TSIO 360 fuel meetering

I am assembeling front and rear Engine on P337 and where the primer pipes join induction system there is similar pipes before and after throttle body on induction pipe going thru baffel and to fuel flow meter
Does anyone have a picture of where these pipes go so I donít get them crossed.
My rear engine is turning less rpm at wot than the front and Iím looking for reasons
New P337 owner 😅
Reply With Quote
  #2
Unread 12-03-19, 10:13 PM
hharney's Avatar
hharney hharney is offline
Forum Administrator

Join Date: Jul 2002
Location: Michigan (8D4)
Posts: 2,234
hharney is on a distinguished road
You have the Parts Catalog book?
__________________
Herb R Harney
1968 337C

Flying the same Skymaster for 45 years
Reply With Quote
  #3
Unread 12-04-19, 05:46 AM
Cap.jensen Cap.jensen is offline
Registered User

Join Date: Mar 2019
Location: Denmark
Posts: 11
Cap.jensen is on a distinguished road
Hi Herb
I do have parts catalog but not very clear re which pipe goes to before and after throttle body
Reply With Quote
  #4
Unread 12-04-19, 02:33 PM
Kim Geyer Kim Geyer is offline
Registered User

Join Date: May 2002
Location: Bahama, NC
Posts: 245
Kim Geyer is an unknown quantity at this point
If I'm understanding you correctly, the line before the throttle body is to the fuel flow gage vent. The line after the throttle body is to manifold pressure gage.
Kim
Reply With Quote
  #5
Unread 12-04-19, 03:23 PM
Cap.jensen Cap.jensen is offline
Registered User

Join Date: Mar 2019
Location: Denmark
Posts: 11
Cap.jensen is on a distinguished road
Pic

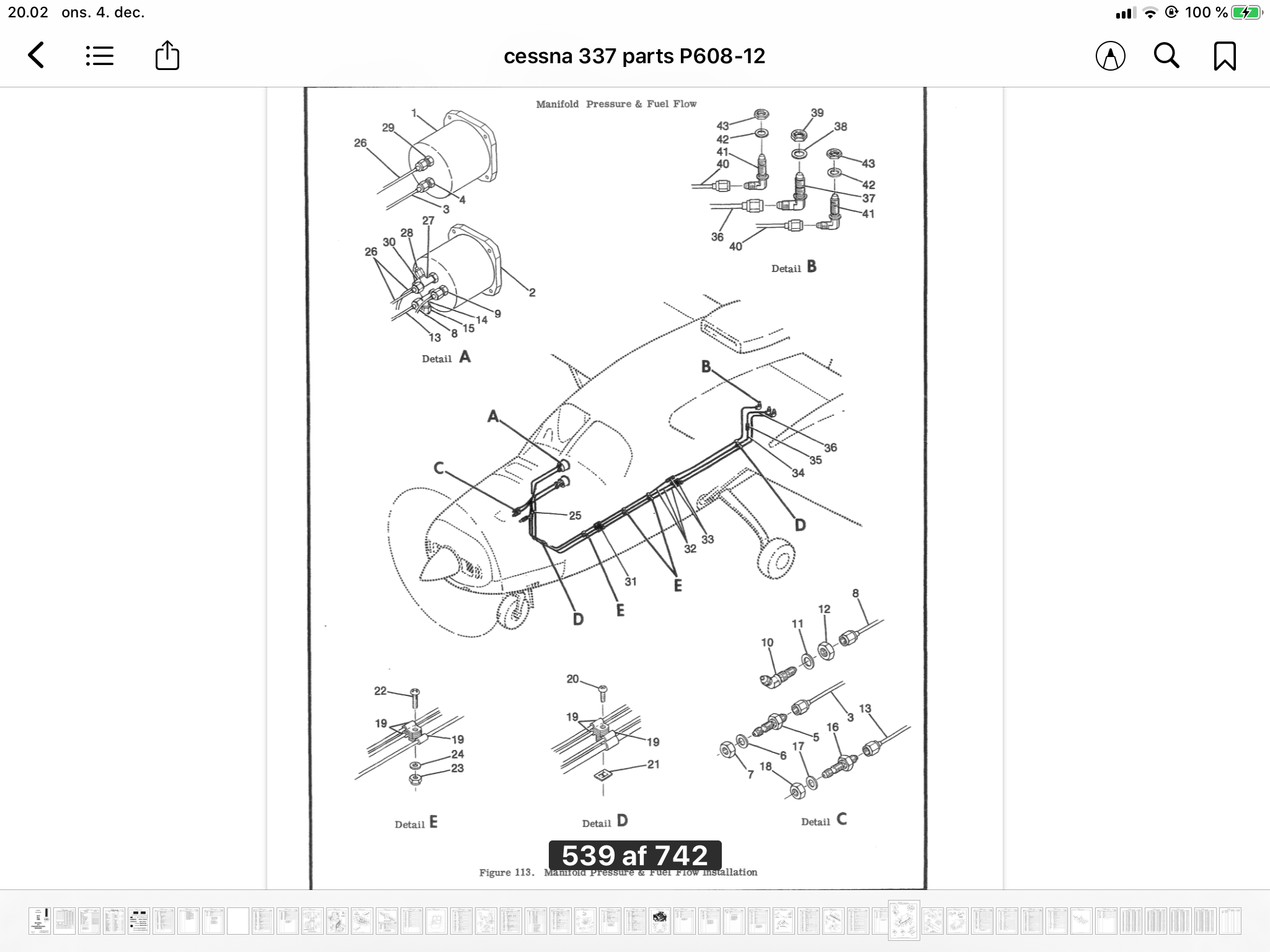

Hereís the manual schematic
